3Score의 Server 제품들을 경험하세요.

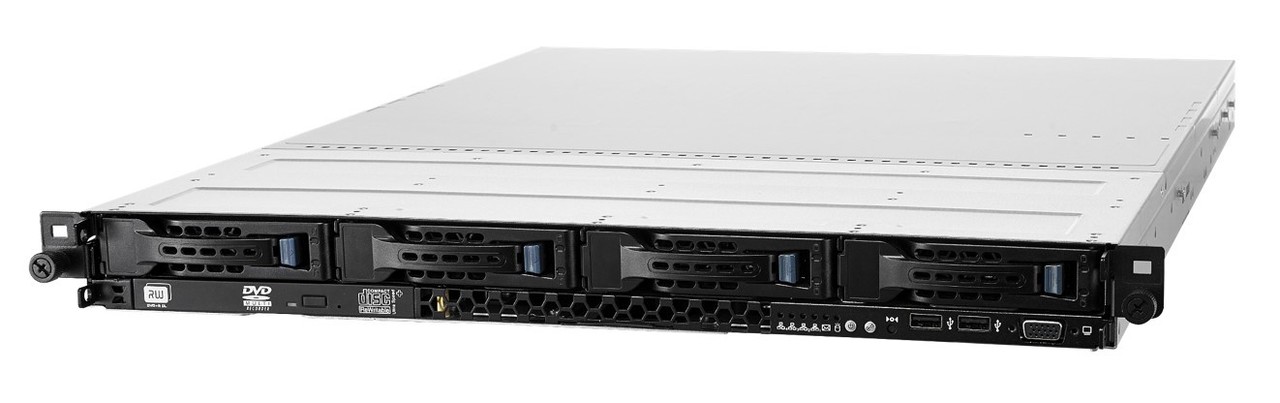

SR143 C3을 소개합니다

OVERVIEW


- Computing Power

    * 최신 Xeon E-21xxxx Processor, Coffee Lake Six Core, 12 Threads Processor이

       제공하는 강력한 Computing 성능


- Internal Storage

    * 4ea SAS/SATA 3.5” Hot-Swap Bay

    * 2ea SSD 2.5” Internal Bay

    * 2ea M.2 Slot

    * (NGFF 22110/2280/2260/2242


- Enhanced Memory Performance

    * CPU Integrated 메모리 컨트롤러와 1Way 적용되는 DDR4 2666Mhz의 강력한 메모리

       IO 성능으로 최대 64GB까지 지원.


- PCI-Express Gen3

    * 2ea PCI-E Gen3 Slot


- Network expansion

    * Onboard 1G Quad Port 를 기본제공하여, 확장된 네트워크 지원.


- Power Saving Server

    * Single 400W 80PLUS Gold PSU

SPECIFICATIONS


- Processor:

    * 1 x Socket LGA1151
    * Intel® Xeon® processor E-2100 family
    * Intel® Core™ i3 processors

- Momory:

    * Slot: 4ea (2CH) / Capacity: Max 64GB

    * DDR4 2133MHz Unbuffered ECC & non ECC

    * 4GB, 8GB, 16GB

- Storage:

    * Hot-swap 4ea 3.5” SAS/SATA Disk Bay

    * 2ea SSD Fixed mount kit

    * 6ea SATA3 6Gbps, 2ea M.2 connector

    * SATA Host RAID 0, 1, 5, 10

    * Optional SAS 6G/12G Controller Host RAID 0, 1

    * Optional SAS 6G/12G HW RAID Cache 1GB RAID 0, 1, 5, 6

- Core Logics:

    * Intel C242 Chipset

- Networking:

    * 4ea Intel PCI-E GbE LAN (Intel I210)

    * Optional 1ea Management LAN

- PCI-Slot:

    * 1ea PCI-Express x16 Full Profile (x8 Gen3 Link)

    * 1ea PCI-Express x8 Full Profile (x8 Gen3 Link)

- Management:

    * Optional iKVM for KVM over IP service (IPMI 2.0 Support)

- Graphic:

     * Aspeed AST2500 32MB

- Dimension:

    * 44 (H) x 444 (W) x 615 (D) mm (1U) 16kg (No CPU, Memory and Disk)

    * Optional Front Bezel

- ODD:

   * Slim DVD Multi SATA interface

- PSU:

    * Dual 450W 80PLUS Gold PSU
