3Score의 나라장터 조달물품을 소개합니다.

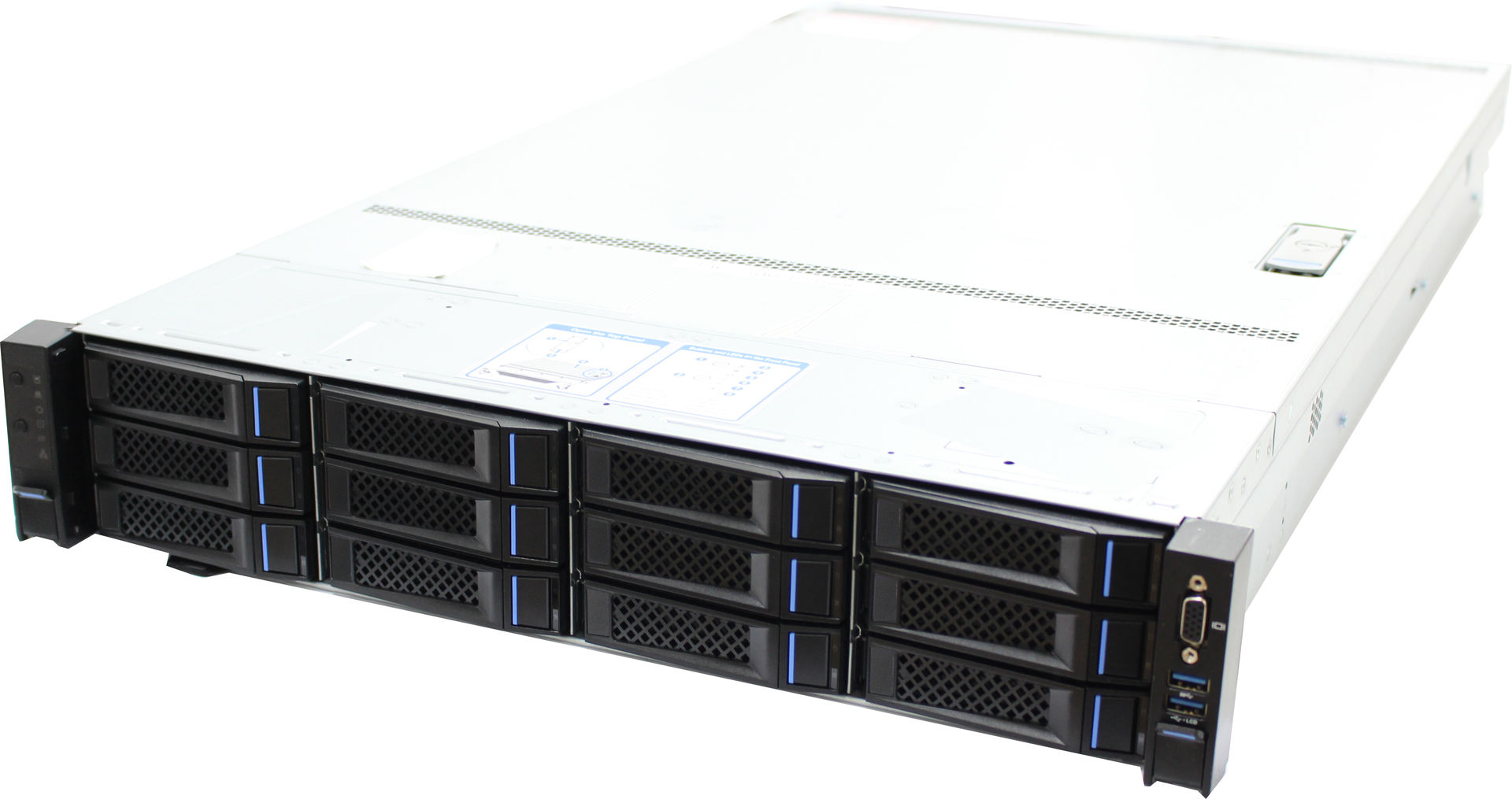

SR226C2-V1을 소개합니다.
나라장터 물품식별번호 : 23414008
중소기업간 경쟁제품

OVERVIEW
- Computing Power
인텔® Advanced Vector Extension 512(인텔® AVX-512)를 포함한 새로운 기능과
워크로드에 최적화된 성능 및 처리량으로 첨단 분석, 고성능 컴퓨팅(HPC) 애플리케
이션, 데이터 압축 기능을 지원. (28Coree/CPU, Max. 56Core)
- Internal Storage
SAS3 12G 지원과 동시에 12개의 3.5” SAS/SATA/SSD Bay로 풍부한 Storage 구성.
내부 M.2 SSD Slot 제공.(옵션 : PCIe slot Rear 2.5” SSD 2bay 지원)
- Enhanced Performance
24개의 (2DIMM / 6CH /CPU DDR4 2,666MT/s.과 12 NVDIMM을 지원.
- PCI-Express Gen3
6ea PCI-E x8 Riser Card(FH)
Optional 2ea PCI-E x8 Riser Card(FL)
- Power Saving Server
800W 80PLUS Platinum Redundant PSU 장착
SPECIFICATIONS
- Processor:
* Xeon Silver 4110, 2.1G, 8Core * 2
* Intel Xeon 2U 2Way Server
* Intel Xeon Scalable series, FCLGA3647, Up to TDP 205W
- Momory:
* 64GB / 24 DIMM (12 Chanel per CPU) / DDR4 Registered DIMM, LR DIMM, NVDIMM
- Chipset: Intel C620
- Storage:
* SATA 4TB * 3
* 12ea 3.5" SATA/SAS/NVMe Hot Swap Disk Bay / Onboard SATA/SAS Controller
Optional SAS3 Controller Host RAID 0,1
Optional SAS3 HW Raid Controller Cache 1GB, RAID, 0, 1, 5, 6
- Graphic Adaptor:
* Aspeed 2500
- Network Adaptor:
* 4ea 1Gbe Copper Ports
- Front Panel
* 1ea USB 3.0 port, 1ea USB 2.0 port, Power Button, UID LED & button, Network
status LED
* Memory fault LED, Power fault LED, System overheat LED, Fan fault LED,
System fault LED
- Rear Panel
* 2ea USB 3.0 port, 1ea VGA port, Management RJ145 port, Location ID switch and
LED, BMC reset button
- Extention Slot:
* 6ea PCI-E x8 Riser Card(FH) / Optional 2ea PCI-E x8 Riser Card(FL)
- Cooling fan: 7ea Redundant System Fan
- Power Supply
* Redundant 800W 80PLUS Platinum PSU(Optional 1200W Redundant)
- Form Factor
* 2U Rack mount / 87 (H) x 435 (W) x 800 (D) mm
나라장터 종합쇼핑몰
조달 공급
조달청의 나라장터종합쇼핑몰에 다양한 물품(server, storage, solution 등)을 공급하고 있습니다.
나라장터 종합쇼핑몰(http://shopping.g2b.go.kr)에서 "쓰리에스코어"를 검색해주세요
